What Are DIN Rail Terminal Blocks?

DIN rail terminal blocks are vital components in electrical systems, used for connecting and organizing wires in a safe and efficient manner. These modular connectors mount on standardized DIN rails, providing a reliable solution for managing complex wiring in both industrial and commercial settings. Their compact design makes them suitable for installations where space is limited, while their ease of use ensures quick and secure connections.

They come in various types, including single-level, dual-level, and models equipped with fuses for added safety. Each type serves a specific purpose, allowing engineers and technicians to select the right block for their unique applications. With options like screw terminals or push-in connectors, DIN rail terminal blocks cater to different installation needs effectively.

Understanding the function and benefits of DIN rail terminal blocks helps professionals make informed choices when designing electrical control panels or automation systems. As these components continue to evolve, staying updated on their features and applications is essential for ensuring safety and performance in electrical installations.

Defining DIN Rail Terminal Blocks

DIN rail terminal blocks are vital components used in electrical systems for connecting and organizing wires. Their modular design allows for easy installation and maintenance in various applications. Understanding their uniqueness, compatibility with standards, and key features is essential for effective use.

What Makes DIN Rail Terminal Blocks Unique

DIN rail terminal blocks are specifically designed to mount on standardized metal DIN rails, which are commonly used in industrial and commercial settings. The modular design allows for flexibility and efficiency in wiring configurations. Their compact size does not hinder performance; instead, it enables them to work effectively within limited spaces.

These blocks typically have color-coded terminals to indicate different current ratings, simplifying installation and troubleshooting. Additionally, some models feature integrated fuses for extra protection, making them suitable for sensitive equipment. The variety of models available, including single, dual, and multiple-level configurations, enhances their versatility.

DIN Rail Standards and Compatibility

DIN rail terminal blocks are built in accordance with international standards such as IEC 60947, which ensures they meet safety and operational guidelines. The DIN rail system itself provides a reliable mounting solution, with set dimensions that allow for compatibility across different manufacturers.

This standardization means that users can mix and match terminal blocks from various brands without compromising performance. Compatibility with a range of other components, including power supplies and circuit breakers, further enhances their usability. This feature makes them a preferred choice for engineers and technicians.

Key Features and Benefits

The key features of DIN rail terminal blocks include:

• Modular Design: Easy to install and rearrange in control panels.
• Space Efficiency: Compact sizes make them ideal for crowded electrical enclosures.
• Variety of Termination Types: Options include screw, plug-in, and spring-loaded terminals for secure connections.
• Integrated Protection: Many blocks come with fuses and indicator lights to signal issues, enhancing safety and reliability.

The benefits of using DIN rail terminal blocks extend to simplifying complex wiring tasks, improving organization, and ensuring safe electrical connections. Their ability to withstand industrial environments makes them a long-lasting solution for electrical installations.

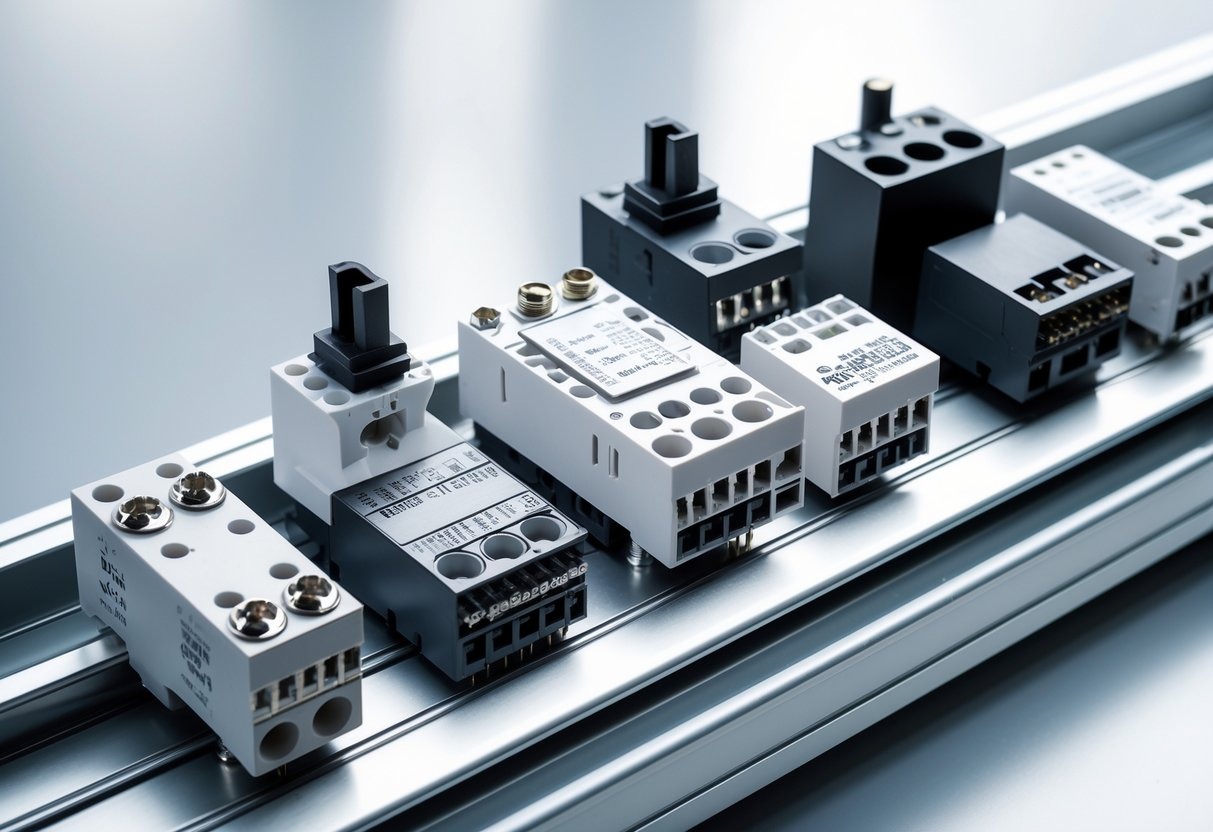

Types of DIN Rail Terminal Blocks

DIN rail terminal blocks come in various types, each suited for different electrical applications. Understanding these types helps in selecting the right component for any project, whether it involves general wiring, grounding, or circuit protection.

Feed-Through Terminal Blocks

Feed-through terminal blocks are designed for connection where wires need to pass from one side to the other. They usually feature a simple design with terminals for connecting wires directly. This type allows for a straightforward connection of multiple wires in series.

These blocks can support various wiring configurations based on the requirements. Feed-through terminal blocks are often color-coded, indicating their current rating, which is essential for preventing overload. They are commonly used in control panels and electrical distribution systems.

Key Features:

• Versatile Connection Options: Capable of handling different wire sizes.
• Easy Installation: Requires minimal tools for setup.

Ground Terminal Blocks

Ground terminal blocks, also known as earth terminal blocks, are critical for safety in electrical systems. They connect wires directly to the ground, helping to discharge excess electrical charge. Proper grounding protects both people and equipment from electrical faults.

These blocks typically feature green and yellow housing, indicating their purpose. Ground terminal blocks can be mounted onto DIN rails with secure clamps or screws. Their design ensures a reliable connection, which is vital for maintaining system integrity.

Key Features:

• Direct Earthing: Provides a safe path for electric currents.
• Color-Coded Design: Easily identifiable for quick installation.

Sensor and Actuator Terminal Blocks

Sensor and actuator terminal blocks are specialized for connecting sensors, relays, and actuators in automation systems. They allow for efficient signal transmission and manage the power supply to these components.

These blocks can come with specific features, such as built-in fuses for circuit protection. This feature protects sensitive equipment from surges or overloads, ensuring long-term reliability. Sensor and actuator terminal blocks are essential in applications like industrial automation, where precision and safety are paramount.

Key Features:

• Integrated Circuit Protection: Safeguards against electrical faults.
• Efficient Signal Management: Ensures reliable communication between components.

Fuse and Disconnect Terminal Blocks

Fuse and disconnect terminal blocks serve a dual purpose: they provide a secure connection for wires while also integrating circuit protection features. These blocks often include a fuse that can break the circuit in case of an overcurrent, thereby protecting the entire system.

Users can easily replace fuses when blown, making maintenance straightforward. These blocks are ideal for complex systems requiring reliable protection. Commonly found in control panels, fuse and disconnect terminal blocks ensure that devices are safeguarded against electrical surges.

Key Features:

• Integrated Fuses: Protects against overcurrent situations.
• Easy Maintenance: Fuses can be replaced without disconnecting entire circuits.

Connection Methods and Key Components

DIN rail terminal blocks use various connection methods to ensure secure wiring and reliability. The choice of connection affects how easily wires can be attached or removed and impacts the overall efficiency of the electrical system.

Screw Clamp and Screw Connection

Screw clamp connections are the most common method used in DIN rail terminal blocks. This method involves a metal clamp that secures the wire in place. The process begins by inserting the stripped end of the wire into the block and tightening a screw, which compresses the clamp around the wire, ensuring a strong and reliable connection.

Advantages of screw connections include:

• Strong Mechanical Bond: Provides a secure hold that can withstand vibration.
• Versatility: Works with various wire sizes and types.
• Ease of Maintenance: Allows for straightforward wire changes without special tools.

Regular inspection of screw connections can prevent issues like loosening over time. They are often marked with appropriate labels for easy identification.

Spring Clamp and Spring Clamps

Spring clamp connections use a different mechanism, relying on a spring-loaded system to secure wires. This method allows for fast and tool-free wire connections. When the wire is pushed into the spring clamp, the spring compresses and grips the wire firmly.

Benefits of spring clamps include:

• Quick Installation: Eases the process of connecting or disconnecting wires.
• Reduced technical skills needed: Simple operation makes them user-friendly.
• Vibration Resistance: They effectively maintain a secure connection even in dynamic environments.

Spring clamps are often preferred in situations where frequent changes to connections occur, saving time during installations and maintenance.

Insulation Displacement (IDC)

Insulation Displacement Connectors (IDC) serve a specialized function in connecting wires without stripping insulation. The design allows the wire to be inserted into the IDC, where sharp blades penetrate the insulation, making contact with the conductive core. This method creates a secure electrical connection without the need for accessory components.

Key features of IDC connections are:

• Time Efficiency: As no stripping is required, this speeds up the wiring process.
• Consistency: IDC provides reliable connections in mass installation scenarios.
• Reduced Labor Costs: Less work and tools needed lead to lower installation costs.

IDCs are often used in large-scale settings, such as factories, where multiple connections are made simultaneously.

Terminal Block Accessories and Marking System

Various accessories enhance the functionality of DIN rail terminal blocks. Labels and marking systems help with organization and identification. Color-coded labels or printable markers can be affixed to each block, ensuring clarity in complex wiring setups.

Accessories include:

• End Plates: Prevent accidental disconnection at the end of a block.
• Jumpers: Allow for easy connections between blocks.
• Test Points: Facilitate troubleshooting without disconnecting wires.

These accessories contribute to both safety and efficiency, making maintenance easier for technicians. A clear marking system is essential in reducing errors during installation and servicing.

Installation, Compatibility, and Selection Criteria

Proper installation and selection of DIN rail terminal blocks are essential for ensuring reliable performance in electrical systems. Consider key factors such as wire size compatibility, mounting requirements, and the specific electrical ratings needed for safety and efficiency in various applications.

Wire Size Compatibility and Ratings

When selecting terminal blocks, it is crucial to verify wire size compatibility. Terminal blocks generally accommodate specific ranges of wire gauges, ensuring secure connections. Typical categories include:

• Miniature blocks: 22-14 AWG
• Medium-duty blocks: 20-10 AWG
• Heavy-duty blocks: 12-4 AWG or larger

Using the correct wire size prevents loose connections, which can lead to increased resistance or complete failure. In addition to size, compatibility with either stranded or solid wire is necessary. Some terminal blocks may require ferrules for stranded wires to ensure reliable connections. It’s advisable to consult the manufacturer’s specifications to align the wire gauge with the selected terminal block’s capabilities.

Panel and DIN Rail Mounting Considerations

DIN rail terminal blocks must be installed on compatible DIN rails to function correctly. The most common type is the TS35 rail, which is 35mm wide. Proper mounting ensures the stability and accessibility of the wiring system. Key points to remember include:

• Space Management: Measure the available panel space to determine how many terminal blocks can fit.
• Orientation: Ensure the rail is mounted level, securing it with appropriate screws and washers.
• Accessories: Plan for the installation of end plates or brackets, which help secure the blocks in place and prevent movement.

Additionally, when mounting, consider future expansions. Adding space during the initial setup can save time and effort later, as more connections might be necessary down the line.

Current and Voltage Ratings

Selecting terminal blocks involves understanding current and voltage ratings. Terminal blocks have specific limits based on their design and materials. Common specifications include:

• Current Ratings: Typically range from 5A to 150A, depending on the block’s design. Using blocks rated above anticipated current levels offers a safety cushion.
• Voltage Ratings: Voltage ratings usually range from 300V to 1000V. Always ensure the chosen terminal block exceeds the required voltage for added security.

It’s recommended to select terminal blocks with a margin of at least 20% above the application’s maximum voltage or current. This helps accommodate potential fluctuations and ensures safe operation. Proper rating selection plays a crucial role in preventing overheating and failures.

Corrosion and Vibration Resistance

In environments where corrosion or vibration is an issue, selecting terminal blocks made from materials that provide adequate protection is vital. High-quality terminal blocks often feature robust insulating materials that protect against exposure to moisture or chemical substances.

To address vibration:

• Spring-clamp terminals offer superior resistance to vibration compared to screw-type terminals.
• Look for blocks designed with anti-vibration features or confirming third-party testing for assurance.

For locations requiring high durability, blocks with enhanced corrosion resistance, such as those made from stainless steel, can provide an effective solution. This combination of considerations enhances the reliability and longevity of the connections in demanding environments.

Applications and Real-World Use Cases

DIN rail terminal blocks are widely used across various industries due to their reliable, modular design. They play a crucial role in organizing and connecting electrical components, enhancing efficiency and safety in different setups. Below are key applications highlighting their importance in modern electrical systems.

Control Panels and Power Distribution Panels

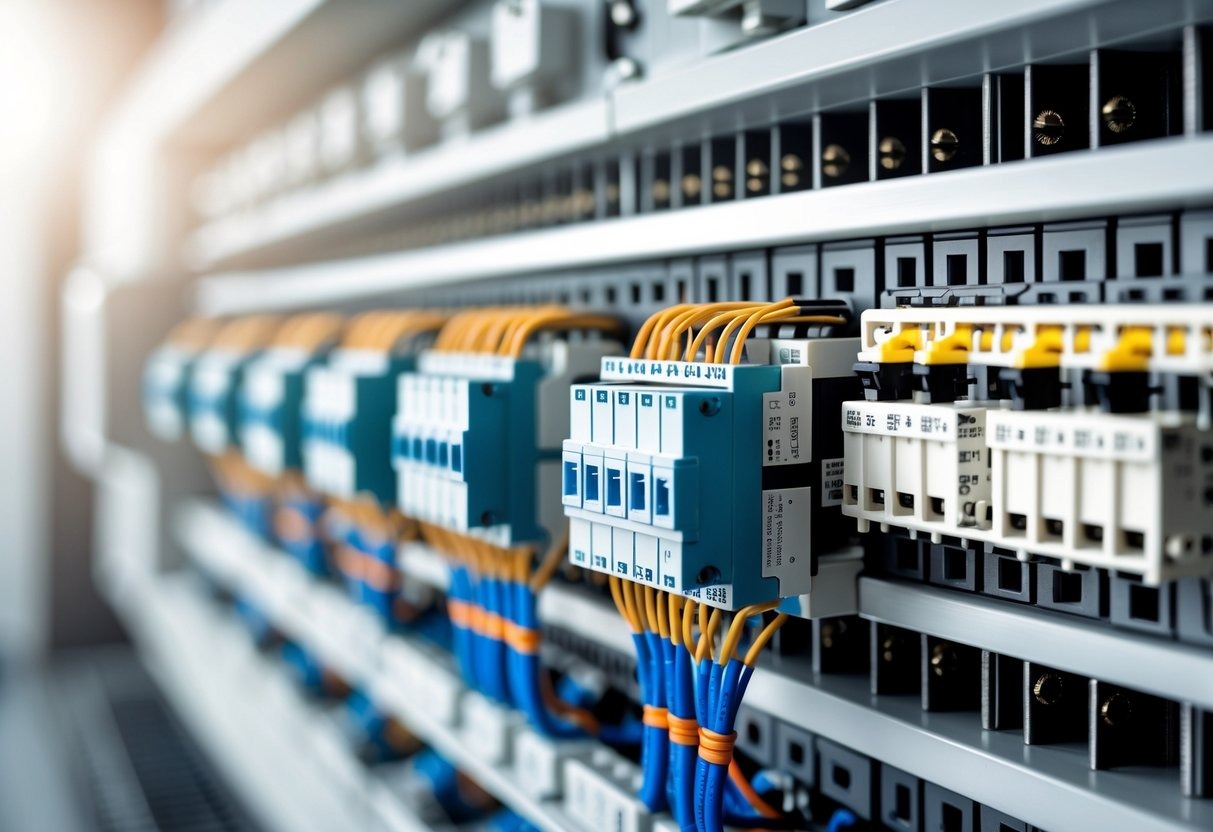

In control panels and power distribution panels, DIN rail terminal blocks are essential for maintaining organized wiring. They provide a secure method for connecting multiple wires, which is critical for the proper functioning of devices, such as controllers and actuators. The compact design allows for neat layouts, making troubleshooting and maintenance easier.

DIN rails enable quick installation, allowing for adjustments and expansions as needed. Moreover, terminal blocks come with various current ratings, ensuring compatibility with diverse electrical loads. By using color-coded blocks, operators can quickly identify circuits, improving overall safety and efficiency in power distribution setups.

Industrial Automation and Control Systems

DIN rail terminal blocks are vital components in industrial automation and control systems. They facilitate the connection of field devices like sensors, PLCs (Programmable Logic Controllers), and other automation equipment. This connectivity is crucial for streamlining processes and ensuring reliable communication between devices.

In these systems, terminal blocks often feature built-in fuses, providing an added layer of protection against electrical surges. Their modular design allows for easy scaling of systems, which is important in dynamic industrial environments. Maintenance technicians appreciate the easy access to wiring and connections, which simplifies servicing and reduces downtime in production lines.

Building Management and Renewable Energy Integration

In building management systems, DIN rail terminal blocks enhance control over power distribution for lighting, HVAC, and other essential functions. They help organize network connections, ensuring that multiple systems can operate seamlessly. This organization is vital for maintaining energy efficiency and user comfort.

In renewable energy applications, such as solar power systems, DIN rail terminal blocks streamline wiring and monitoring. They connect various components, ensuring reliable data flow and power distribution. Their compatibility with modern energy storage solutions highlights their importance as the world shifts toward sustainability. By effectively managing connections, these blocks help integrate renewable technologies into existing systems smoothly.

Leading Brands and Industry Innovations

DIN Rail terminal blocks are vital components in industrial automation. Several leading manufacturers are known for their innovative designs and high-quality products, making them significant players in the market.

Major Manufacturers and Product Differentiators

Prominent brands like Phoenix Contact and WAGO are at the forefront of terminal block technology. Phoenix Contact offers advanced terminal blocks featuring push-in connection technology, which simplifies wiring and improves connection reliability. Their products often include LED indicators for easier monitoring of connections. WAGO is well-known for its cage clamp technology that enhances installation efficiency and reduces wiring errors.

Other notable manufacturers include Weidmuller and Schneider Electric, both recognized for their user-friendly designs and high-performance offerings. Weidmuller focuses on Klippon® Connect systems that cater to varying voltage and amperage needs, while Schneider delivers comprehensive solutions including circuit protection and smart terminal blocks.

Trending Features: Modular Design and Accessories

The trend in terminal blocks is moving towards modular designs, allowing users to customize setups easily. Modular terminal blocks enable quick connections and flexibility in layout, making them suitable for varied applications. Accessories such as end brackets and jumpers are available to enhance functionality.

Test plugs and voltage drop solutions are also integral to modern terminal block systems. These features allow for easy testing and monitoring of electrical flow, ensuring reliability in complex setups. Many brands incorporate these accessories as part of their product lines, catering to the needs of engineers and technicians.

Future Developments in Terminal Block Technology

Looking ahead, terminal block technology is expected to evolve rapidly. Manufacturers are placing a greater emphasis on digitalization and smart components that facilitate better integration into automated systems. The incorporation of self-monitoring features will enable predictive maintenance and improve overall reliability.

Additionally, there is a growing focus on sustainability, with brands exploring eco-friendly materials and energy-efficient designs. Enhanced safety features, such as integrated surge protection, will likely become standard. These innovations aim to meet the increasing demands of modern industries and adapt to emerging technologies.
